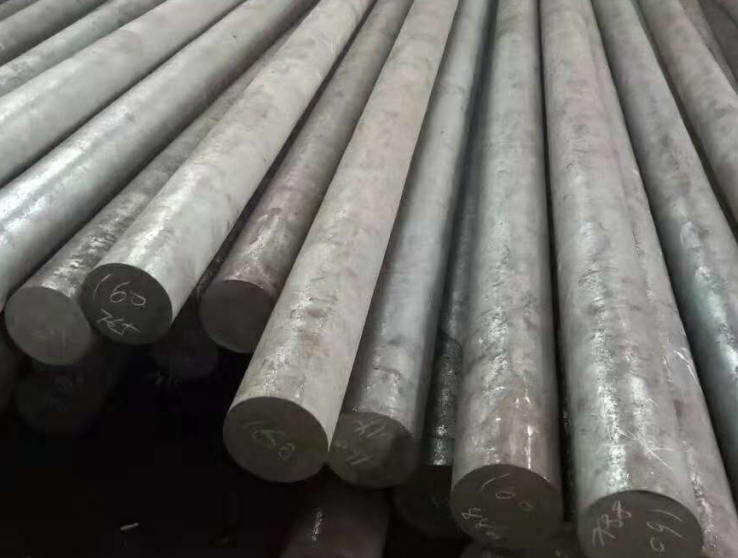

Z3 CN 25.06 Az UNS S32750 DIN 1.4410 X2CrNiMoN25-7-4 2507 Super Duplex Stainless Steel
Z3 CN 25.06 Az UNS S32750 DIN1.4410 X2CrNiMoN25-7-4 2507 Super Duplex Stainless Steel
1. 2507 Introduction
2507 Super Duplex Stainless Steel was designed for demanding applications which require exceptional strength and corrosion resistance, such as chemical process, petrochemical, and seawater equipment. Alloy 2507 is a super duplex stainless steel with 25% chromium, 4% molybdenum, and 7% nickel designed for demanding applications which require exceptional strength and corrosion resistance, such as chemical process, petrochemical, and seawater equipment.
2. 2507 CHARACTERISTICS
- High imperviousness to chloride stress consumption splitting
- High Strength
- Better resistance than chloride setting and cleft consumption
- Great general consumption resistance
- Proposed for applications up to 600° F
- Low rate of warm development
- Blend of properties given by austenitic and ferritic structure
- Great weldability and workability
3. 2507 Applications
- Oil and Gas industry equipment
- Offshore platforms, heat exchangers, process and service water systems, fire-fighting systems, injection and ballast water systems
- Chemical process industries, heat exchangers, vessels, and piping
- Desalination plants, high pressure RO-plant and seawater piping
- Mechanical and structural components, high strength, corrosion-resistant parts
- Power industry FGD systems, utility and industrial scrubber systems, absorber towers, ducting, and piping
4.Quality Standard
ASTM A182 Standard Specification for Forged or Rolled Alloy-Steel Pipe Flanges, Forged Fittings, and Valves and Parts
ASTM A276 Standard Specification for Stainless Steel Bars and Shapes
EN 10088 part3 stainless steel
ASTM A240 Standard Specification for Chromium and Chromium Nickel Stainless Steel Plate Sheet and Strip
5.All Grades Comparison
| ASTM A240 | EN10088 | AFNOR |
|---|---|---|
| UNS S32750 | 1.4410 – X2CrNiMoN25-7-4 | Z3 CN 25.06 Az |
Smelting Option
1 EAF: Electric Arc Furnace
2 EAF+LF+VD: Refined-smelting and vacuum degassing
3 EAF+ESR: Electro Slag Remelting
4 EAF+PESR: protective atmosphere Electro Slag Remelting
5 VIM+PESR: Vacuum induction melting
Forming Option
1 Hot rolling process
2 Hot Forging: Electro-hydraulic; High-speed-hydraulic; Oil-hydraulic; Precision-forging
Heat-treatment Option
1 +A: Annealed (full/soft/spheroidizing)
2 +N: Normalized
3 +NT: Normalized and tempered
4 +QT: Quenched and tempered (water/oil)
5 +AT: Solution annealed
6 +P: Precipitation hardened
Suface Option
1 Black Surface
2 Grounded: Bright but rough ; Not precision
3 Machining for plate: Bright and precision; Little turning scar
4 Peeled/Turned: Bright and precision; Little turning scar
5 Polished: Very Bright and precision size; Not turning scar
Other Services
1 Cutting: Small pieces
2 CNC Machine: Produce as your drawing
3 Package: Bare/Nylon/Canvas/Wooden
4 Payment:T/T, L/C, O/A(request credit)
5 Transport:FOB/CFR/CIF/DDU/DDP (train/ship/Air)
Chemical Composition(%)
| Steel Grade | C | Si | Mn | P | S | Cr | Ni | Mo | N | Cu |
|---|---|---|---|---|---|---|---|---|---|---|
| 2507 | 0.03 max | 0.80 max | 1.20 max | 0.035 max | 0.020 max | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 | 0.24-0.32 | 0.50 max |
| 1.4410 | 0.03 max | 1.00 max | 2.00 max | 0.035 max | 0.015 max | 24.0-26.0 | 6.0-8.0 | 3.00-4.50 | 0.24-0.32 | / |
6.Mechanical Properties (Annealed)
| Hardness (HB) | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation (%) (Long.) | Impact Value (J) (Long.) |
|---|---|---|---|---|
| 290 max | 730-930 | 530 min | 25 min | 100 min |
7.Corrosion Resistance
General Corrosion: The high chromium and molybdenum content of 2507 Super Duplex Stainless Steel make it extremely resistant to uniform corrosion by organic acids like formic and acetic acid. 2507 Super Duplex Stainless Steel also provides excellent resistance to inorganic acids, especially those containing chlorides.
In dilute sulfuric acid contaminated with chloride ions, 2507 Super Duplex Stainless Steel has better corrosion resistance than 904L, which is a highly alloyed austenitic steel grade specially designed to resist pure sulfuric acid.
Stainless steel of type 316L (2.5%Mo) cannot be used in hydrochloric acid due to the risk of localized and uniform corrosion.
However, 2507 Super Duplex Stainless Steel can be used in dilute hydrochloric acid. Pitting need not be a risk in the zone below the borderline in this figure, but crevices must be avoided.
Intergranular Corrosion: 2507 Super Duplex Stainless Steel low carbon content greatly lowers the risk of carbide precipitation at the grain boundaries during heat treatment; therefore, the alloy is highly resistant to carbide-related intergranular corrosion.
Stress Corrosion Resistance:The duplex structure of 2507 provides excellent resistance to chloride stress corrosion cracking (SCC). Because of its higher alloy content, 2507 is superior to 2205 in corrosion resistance and strength. 2507 Super Duplex Stainless Steel is especially useful in offshore oil and gas applications and in wells with either naturally high brine levels or where brine has been injected to enhance recovery.
Pitting Corrosion: Different testing methods can be used to establish the pitting resistance of steels in chloride-containing solutions. The data above were measured by an electrochemical technique based on ASTM G61. The critical pitting temperatures (CPT) of several high-performance steels in a 1M sodium chloride solution were determined. The results illustrate the excellent resistance of 2507 to pitting corrosion. The normal data spread for each grade is indicated by the dark gray portion of the bar.
Crevice Corrosion: The presence of crevices, almost unavoidable in practical constructions and operations, makes stainless steels more susceptible to corrosion in chloride environments. 2507 Super Duplex Stainless Steel is highly resistant to crevice corrosion. The critical crevice corrosion temperature of 2507 Super Duplex Stainless Steel and several other high-performance stainless steels are shown above.
8.Processing
Fabrication Cold Forming: Most of the common stainless steel forming methods can be used for cold working 2507 Super Duplex Stainless Steel. The alloy has a higher yield strength and lower ductility than the austenitic steels so fabricators may find that higher forming forces, increased radius of bending, and increased allowance for springback are necessary. Deep drawing, stretch forming, and similar processes are more difficult to perform on 2507 Super Duplex Stainless Steel than on an austenitic stainless steel. When forming requires more than 10% cold deformation, a solution anneal and quench are recommended.
Hot Forming: 2507 Super Duplex Stainless Steel should be hot worked between 1875°F and 2250°F. This should be followed by a solution anneal at 1925°F minimum and a rapid air or water quench.
Heat Treatment: 2507 Super Duplex Stainless Steel should be solution annealed and quenched after either hot or cold forming. Solution annealing should be done at a minimum Failureof 1925°F. Annealing should be followed immediately by a rapid air or water quench. To obtain maximum corrosion resistance, heat treated products should be pickled and rinsed.
Welding: 2507 Super Duplex Stainless Steel possesses good weldability and can be joined to itself or other materials by shielded metal arc welding (SMAW), gas tungsten arc welding (GTAW), plasma arc welding (PAW), flux cored wire (FCW), or submerged arc welding (SAW). P100 filler metal is suggested when welding Outokumpu 2507 because it will produce the appropriate duplex weld structure.
As with any joining process, it is important that the surfaces be cleansed immediately before welding. Preheating of 2507 Super Duplex Stainless Steel is not necessary except to prevent condensation on cold metal. The interpass weld temperature should not exceed 300°F or the weld integrity can be adversely affected. The root should be shielded with argon or 90% N2/10% H2 purging gas for maximum corrosion resistance. The latter provides better corrosion resistance.
If welding is to be done on only one surface and post weld cleaning is not possible, GTAW is suggested for root passes. GTAW or PAW should not be done without a filler metal unless post weld clean up is possible. A heat input of 5-38 kJ/in. should be used for SMAW or GTAW. A heat input of about 50kJ/in. can be used for SAW.
9.Mill′s test certificate
EN 10204/3.1 with all relevant data reg. chem. composition, mech. properties and results of testing.
