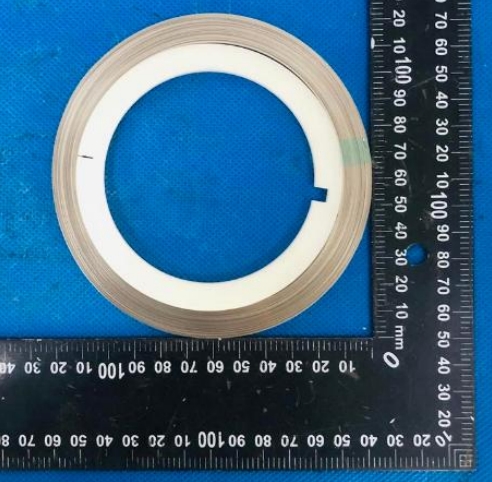

N6 High Purity 99.5% Nickel Foil
1. Introduction:
What is N6 foil?
N6 foil is a high-purity nickel foil rated at 99.5% pure nickel content. It is commonly used in:
Electronics and battery applications
Chemical catalysts
Vacuum technology
Research and laboratory work
Electroplating processes
Key characteristics:
Purity level: 99.5% Ni minimum
Good corrosion resistance
Excellent electrical and thermal conductivity
Malleable and ductile
Temperature resistant
What is N6 foil’s application?
Most foils are produced from cast ingots for use in coating and thin film Chemical Vapor Deposition (CVD) and Physical Vapor Deposition (PVD) processes including Ultra High Purity (99.9+%) thin film foil Thermal and Electron Beam (E-Beam) Evaporation, Low Temperature Organic Evaporation, Atomic Layer Deposition (ALD), Organometallic and Chemical Vapor Deposition (MOCVD) for specific applications such as fuel cells and solar energy.
2. What size of N6 foil?
thickness: 0.05-5.00mm
stock thickness: 0.08，0.1，0.15，0.2，0.25，0.3mm
width: 1.5-330mm
3. What is N6 foil’s chemical composition?
| Composition(%) | Ni +Co | Cu | Mn | C | Si | S |
| N6 | ≥99.5 | ≤0.06 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.005 |
4. What is N6 foil’s mechanical property
Tensile Strength (≥ MPa):965
Resistivity:1.5
Elongation (≥%):25%
Different delivery conditions affect performance characteristics. Please contact us for details.
5. What are the available shape of N6?
*Strip
*Sheet
*Bar
6. Buy N6 foil from Fushun.
info@fushunspecialsteel.com. We will provide you with a free quote within 24 hours.
