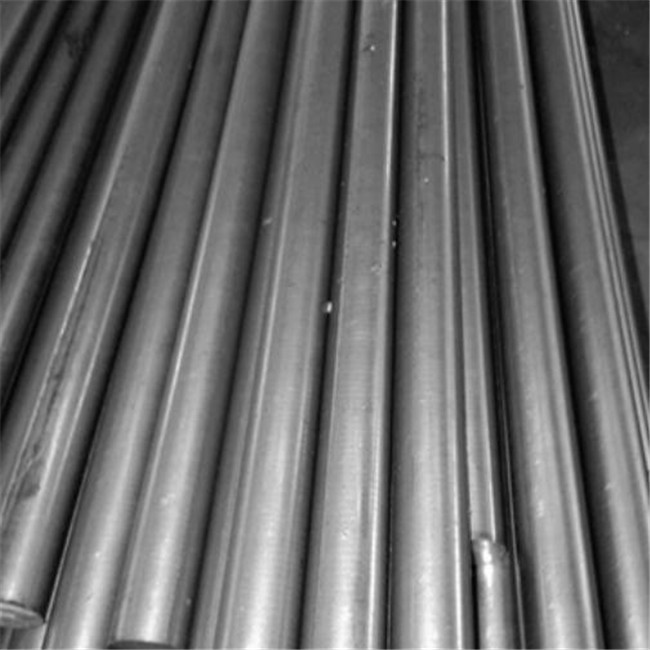

Monel 400 UNS N04400 2.4360 2.4361 Nickel Alloy

With over 35 years of industry expertise, Fushun has the industry knowledge and resources to find you the metal products that you need for your specific industry applications. We are in stock and ready to quickly deliver hard-to-find metals. Our ISO 9001-certified metal supply is one of the most comprehensive selections on the market. We provide timely customer support and quick delivery on all quantities of our in stock products.



Contact us for more information regarding our nickel alloy manufacturing and distribution options.  Fushun is your trusted nickel alloy supplier for all types of Nickel alloy material.

Description

Alloy 400 is a nickel-copper solid solution strengthened alloy. The alloy is characterized by moderate strength, good weldability, good general corrosion resistance and toughness. It is useful at temperatures up to 1000°F (538°C). Alloy 400 has excellent resistance to rapidly flowing brackish or seawater where cavitation and erosion resistance is necessary. It is particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated. Alloy 400 is slightly magnetic at room temperature.

Applications

Alloy 400 is widely used in many fields, especially marine and chemical processing. Typical applications are valves and pumps; pump and propeller shafts; marine fixtures and fasteners; electrical and electronic components; springs; chemical processing equipment; gasoline and fresh water tanks; crude petroleum stills, process vessels and piping; boiler feed water heaters and other heat exchangers; and deaerating heaters.

Chemical Composition

Trade Name	ASTM/AISI Alloy type	UNS	%Cu	%Fe	%Mn	%Si	%Ni
Monel 400	B 127, B 164	N04400	28–34	2.5 max	2.0 max	0.5 max	63 min

Mechanical Properties Minimum Room Temperature Tensile Data

Form	Condition	Ultimate Tensile Strength ksi(MPa)	Yield Strength at 0.2% offset, ksi(MPa)	Elongation in 2″ or 4D, percent
Sheet, Plate, Strip	Annealed	70.0 (480)	28.0 (195)	35
Bar	Annealed	70.0 (480)	25.0 (170)	35

Corrosion Resistance

Alloy 400 is virtually immune to chloride ion stress corrosion cracking in typical environments. Generally, its corrosion resistance is very good in reducing environments, but poor in oxidizing conditions. Alloy 400 is resistant to most alkalis, salts, waters (including saline or brackish), food products, organic substances and atmospheric conditions at normal and elevated temperatures.

This alloy is not useful in highly oxidizing acids, such as nitric and nitrous. It is resistant to sulfuric acid in concentrations to 80% and in hydrochloric solutions in concentrations to 20%.

Oxidizing impurities such as ferric chloride, ferric sulfate, chromates, nitrates, peroxides, and cupric salts, can cause attack in a medium which would otherwise be relatively mild for the alloy.

Hot Working/Cold Working

Alloy 400 is readily hot or cold worked. The hot working range is 1700°F to 2150°F. Optimum working temperature is appoximately 2000°F. Finished fabrications can be produced to a rather wide range of mechanical properities by proper control of the amount of hot and/or cold work and by the selection of proper thermal treatments.

Machinability

The alloy can be machined at satisfactory rates with machine tools generally employed by industry. Generally, cold drawn or cold drawn-stress relieved material is suggested for best machinability and smoothest finish.

Joining

The alloy can be welded, brazed or soldered. Gas or electric welding methods can be employed. When gas welding, the flame must be closed to neutral (on the reducing side), and the work must be done rapidly without rewelding.

Heat Treatment

Both cold worked and hot worked Alloy 400 may be annealed or stress relieved for the desired combination of strength and ductility and to minimized distortion during subsequent machining.

Annealing

Heating should be done in a sulfur-free reducing atmosphere. The annealing range is 1300 to 1800°F, however 1600 to 1800°F is most typical. The lower annealing temperatures (e.g. 1300 to 1500°F) can be utilized with longer times at temperature to minimize grain coarsening.

Stress Relieving

Stress relieving will reduce stresses without recrystallizing the grain structure. Heating to 1000/1050°F for 1 to 2 hours will relieve strains in either hot or cold worked products.

Quality & Testing

Fushun supply Certification with all shipments, containing full chemical analysis and also mechanical test results if requested.



All incoming material is visually inspected and PMI (Positive Material Identification) tested before processing begins and all our production material is checked during each stage of processing.



All incoming orders are produced to the individual customer specification, some of which may involve processing sample batches for testing prior to full production.



Final Inspection carried out on all finished material to include:

Visual inspection

Dimensional checks

PMI (Positive Material Identification)

Mechanical tests



Nickel Alloy Material Available Formats

Fushun offers pure Nickel alloy materials in a variety of forms, including:

Seamless & welded pipe

Seamless & welded tube

Bar

Wire

Sheet

Plate

Forgings

Pipe fittings

Flanges

Weld Rod



Nickel Alloy Supply Quantities for Single Items or Full Bills

At Fushun, we can supply single items or full bills of nickel alloy materials for most any project. No inquiry is too small. We offer quick responses to customer inquiries and specialize in the rapid delivery of both large and small quantities of nickel alloy products.



Contact Fushun for Nickel Alloy Materials Today

Contact us for more information regarding our nickel alloy material options, or request a quote for further pricing details today. Fushun is your trusted nickel alloy supplier and manufacturer of premium nickel alloy materials.
