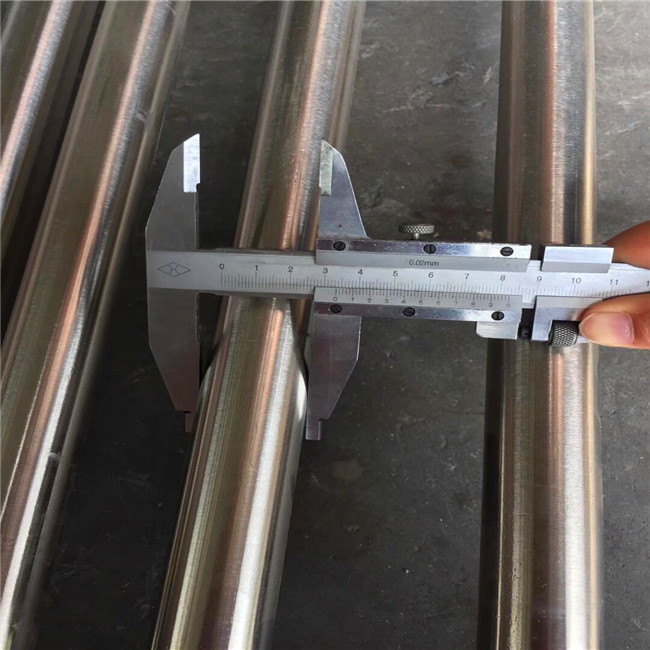

Inconel 600 UNS N06600 2.4816 Nickel-based Alloy

With over 35 years of industry expertise, Fushun has the industry knowledge and resources to find you the metal products that you need for your specific industry applications. We are in stock and ready to quickly deliver hard-to-find metals. Our ISO 9001-certified metal supply is one of the most comprehensive selections on the market. We provide timely customer support and quick delivery on all quantities of our in stock products.



Contact us for more information regarding our nickel alloy manufacturing and distribution options.  Fushun is your trusted nickel alloy supplier for all types of Nickel alloy material.

1 Description

Alloy 600 is a nonmagnetic, nickel-based high temperature alloy possessing an excellent combination of high strength, hot and cold workability, and resistance to ordinary form of corrosion.

This alloy also displays good heat resistance and freedom from aging or stress corrosion throughout the annealed to heavily cold worked condition range.

2 Applications

Some typical applications are: Barge and tank truck liners; Carburizing atmospheres; Ethylene dichloride crackers; Furnace trays, mufflers, hangers; Gasoline stabilizer production; MgCl2 evaporates; Phenol condensers; Soap manufacture; Titanium dioxide; Vegetable and fatty acid vessels

3 Standard

Rod, Bar, Wire and Forging Stock: ASTM B 166; ASME SB 166; ASTM B 564; ASME SB 564; AMS 5665; AMS 5687; BS 3075NA14; and 3076NA14; DIN 17752; DIN 17753; and DIN 17754; ISO 9723, 9724, and 9725, MIL-DTL-23229, QQ-W-390.

Plate, Sheet and Strip: ASTM B 168; ASME SB 168; ASTM B 906; ASME SB 906, ASME Code Cases 1827 and N-253, AMS 5540, BS 3072NA14 and 3073NA14, DIN 17750, ISO 6208, EN 10095, MIL-DTL-23228.

Pipe and Tube:  ASTM B 167; ASME SB 167, ASTM B 163; ASME SB 163, ASTM B 516; ASME SB 516, ASTM B 517; ASME SB 517, ASTM B 751; ASME SB 751, ASTM B 775; ASME SB 775, ASTM B 829; ASME SB 829, ASME Code Cases 1827, N-20, N-253, and N-576, SAE/AMS 5580, DIN 17751, ISO 6207, MIL-DTL-23227

Other:  ASTM B 366/ASME SB 366, DIN 17742, ISO 4955A, AFNOR NC15Fe

4 Chemical Component

Grade	Ni	Cr	Fe	Co	Mn	Cu	Si	C	S
600	≥72.0[a]	14.0–17.0	6.0–10.0	N/A	≤1.0	≤0.5	≤0.5	≤0.15	≤0.015

5 Mechanical Properties

Form and Condition	Tensile Strength		0.2% Yield Strength		% Elongation in 2″	% Reduction of Area	Rockwell Hardness
Rod and Bar Cold-drawn Annealed As-drawn Hot rolled Annealed As-rolled Hot-finished Strip Annealed	80-100 105-150   80-100 85-120 80-120   80-100	552-689 724-1034   552-689 586-827 586-827   552-689	25-50 80-125   30-50 35-90 35-90   30-45	172-345 552-862   207-345 241-621 241-621   207-310	55-35 30-10   55-35 50-30 50-30   55-35	70-60 60-30   70-60 65-50 65-50   —-	65-85B 90B-30C   65-85B 75-95B 75-95B   84B max.

6 Corrosion Resistance

The high chromium content of alloy 600 raises its oxidation resistance considerably above that of pure nickel, while its high nickel content provides good corrosion resistance under reducing conditions. This alloy exhibits high levels of resistance to stress and salt water, exhaust gases, and most organic acids and compounds

7 Heat Treatment

Alloy 600 is not an age hardening alloy; cold working is the only available means of hardening. Softening by annealing begins at about 1600°F (871°C), and is reasonably complete after 10 to 15 minutes of heating at 1800°F (982°C). Above this temperature, grain growth may be objectionable, although very brief heating at 1900°F will cause complete softening without undue grain growth. Since the rate of cooling has no effect on the softening, the material may be water quenched or air cooled.

8 Workability

Hot Working/Forging

Low sulfur reducing furnace atmospheres should be used in forging. Major hot working should be done between 2300/1850°F, while light working may be continued as low as 1600°F. No hot working should be attempted between 1600/1200°F due to lower ductility in that range.

9 Machinability

Alloy 600 is machinable in both the hot worked and annealed conditions. Because considerable heat is generated in machining this alloy, high-speed steel, cast nonferrous or cemented carbide tools should be used. The tools should be kept sharp. Lathe turning speeds with high-speed and nonferrous tools are 35/45 sfm (0.18/0.23 m/s); speeds with cemented carbide tools are 100/175 sfm (0.51/0.89 m/s). (This data should be used as a guide for initial machine setup only. The figures used are averages. On certain work, the nature of the part may require adjustment of speeds and feeds.) Sulfur-based oil should be used as a lubricant, but should be completely removed before the machined part is exposed to elevated temperatures, as in welding.

10 Cold Working

For higher properties, alloy 600 can be cold worked below 1200°F (649°C).

11 Welding

Alloy 600 can be joined by the usual welding , brazing, and soldering process.

Quality & Testing

Fushun supply Certification with all shipments, containing full chemical analysis and also mechanical test results if requested.



All incoming material is visually inspected and PMI (Positive Material Identification) tested before processing begins and all our production material is checked during each stage of processing.



All incoming orders are produced to the individual customer specification, some of which may involve processing sample batches for testing prior to full production.



Final Inspection carried out on all finished material to include:

Visual inspection

Dimensional checks

PMI (Positive Material Identification)

Mechanical tests
