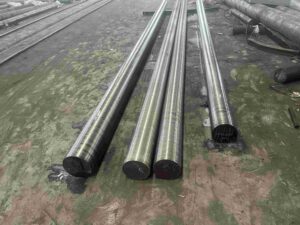

9310 ALLOY STEEL AMS 6265 VAR UNS 93106

9310 ALLOY STEEL AMS 6265 VAR UNS 93106

9310 VAR AMS 6265 is a Chromium-Nickel-Molybdenum Alloy used as a Carburizing Grade for Aircraft Parts. Users can obtain high case hardness coupled with high core strength and toughness. High alloy content makes it suitable for use in relatively large cross-sections. Its combination of high alloy and low carbon content can achieve high core hardness with a narrow range between thicker and thinner part cross sections.

This alloy can be used in some applications without case-hardening, as it exhibits strength with excellent toughness and ductility. Carburizing offers a highly wear-resistant surface. Service Steel Aerospace stocks Premium Aircraft Quality produced double melted in an Electric Furnace, followed by a VAR, or Vacuum Arc Remelt (also known as CEVM). Standard air-melted Aircraft Quality AMS 6260 Air Melt material is available on request. 9310 VIM-VAR material is also available on request.

<<9310 ALLOY STEEL AMS 6265 VAR UNS 93106 DATA SHEET>>

9310 VAR steel is typically used in the following applications:

Aircraft engine gears & pinions

Shafts

Clutch Parts

Boring bars

Piston pins

Aluminum rolling mill rolls



Common Trade Names:

Lescalloy 9310 Vac-Arc

European Designation 10NiCrMo13-5

9310 VAR

AISI 9310

SAE 9310



Common Specifications:

AMS 6265 VAR (CEVM)

AMS 6267 Type 2

AMS 2300 Cleanliness

AMS 6260 Air Melt Aircraft Quality (except VAR)

BPS 299-947-032

MIL-S-7393 Comp 3 (except VAR)

EMS 56729

EMS 56280



Chemical Composition:

Symbol Element Min % Max %
C Carbon 0.07% 0.13%
Mn Manganese 0.40% 0.70%
Si Silicon 0.15% 0.35%
P Phosphorus 0.015%
S Sulfur 0.015%
Cr Chromium 1.00% 1.40%
Ni Nickel 3.00% 3.50%
Mo Molybdenum 0.08% 0.15%
B Boron 0.001% (10 ppm)
Cu Copper 0.035%



Hardenability Requirements:

Jominy: J 1/16 inch: 41 RC Hardness max

Jominy: J 6/16 inch: 32 RC Hardness max

For Material Normalized 1700° F (927° C) with Test Specimen Annealed 1500° F (816° C)



Heat Treatment:

Type Process
Annealing Heat throughout to 1475° – 1575° F, then furnace cool
Normalizing Heat throughout to 1650° – 1750° F, then air cool
Carburizing & Hardening Carburize at 1650° – 1700° F, slow cool. To harden, oil quench from 1425-1545 F
Temper At 250° – 350° F
Approx Case Hardness 60 – 62 HRC
Approx Core Hardness 331 – 363 BHN



Typical Core Properties after Pseudo-Carburizing:

Heat Treatment Tensile Strength Yield Strength Elongation in 2″ Reduction of Area Core Hardness
Pseudo Carburized 1700° F for 8 hours. Oil quenched, Tempered at 300° F for 2 hours 187 ksi 155 ksi 15% 51% 375 Bhn
Pseudo Carburized 1700° F for 8 hours. Slow cool to room temperature. Heat to 1425° F, oil quench. Tempered at 300° F for 2 hours 155 ksi 130 ksi 15.5% 52% 331 Bhn
Pseudo Carburized 1700° F for 8 hours. Slow cool to room temperature. Heat to 1525° F, oil quench. Tempered at 300° F for 2 hours 175 ksi 155 ksi 16% 53% 363 Bhn

Pseudo Carburized: Heat Treat with same process as for Carburizing, but without the presence of Carburizing Gas Furnace Atmosphere.
