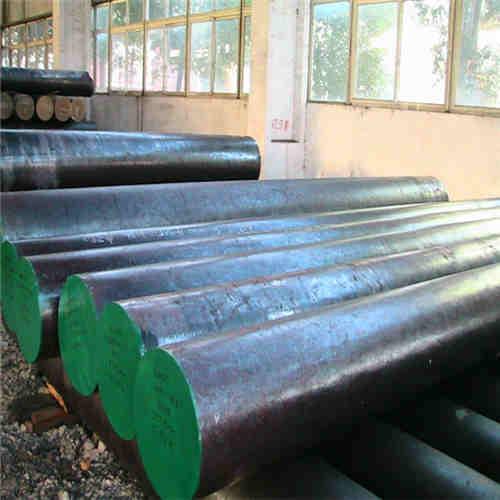

105V 1.2834 Alloy Cold Work Tool Steel

Grade :105V

Number:1.2834

Classification: Alloy cold-work tool steel

Standard: EN ISO 4957: 2000 Tool steels

Cutting:

Precision cutting to standard dimensions

Custom cutting according to client specifications



Surface Grinding/Polishing:

Thickness tolerance: -0 to +0.1mm

Flatness: 0.01/100mm

Surface roughness: Ra ≤1.6 or Rz ≤6.3



Our supply size :

Diameter : 80 to 600 mm ;

Length : 1000 to 9000 mm ;



Our capacity :

Delivery condition : Normalized, or Annealed, or Quenched and Tempered ;

Surface condition : Grounded, or Turned, or Polished



Our advantage :

1. High Quality, Reasonable Price
2. Over 40 Years Experience
3. ISO NQA Certificated Factory
4. Worldwide shipping
5. Emergency Orders and Fast Delivery



Equivalent grades of steel 105V (1.2834)

EU	Japan
EN	JIS
105V	SKS43



Chemical composition %  of steel 105V (1.2834):  EN 4957-2000

C	Si	Mn	P	S	V
1 – 1.1	0.1 – 0.3	0.1 – 0.4	max   0.03	max   0.03	0.1 – 0.2



Hardening of steel 105V (1.2834):  EN 4957-2000

Hardness (annealed) b +A HBW max.	Hardening test
	Austenitizing temperature °C (±10 °C)	Quenching medium	Tempering temperature °C (±10 °C)	Hardness HRC min.
212	790	w	180	61



Surface condition

Usual surface conditions are

1. a) the hot-rolled or forged condition (= as hot worked),
2. b) the machined (ground, polished, turned, peeled or milled) condition, and
3. c) the cold-reduced condition.

Unless otherwise agreed at the time of enquiry and order, the products shall be delivered in the surface condition hot worked.



Mill′s test certificate

EN 10204/3.1 with all relevant data reg. chem. composition, mech. properties and results of testing.



Smelting Option

1 EAF: Electric Arc Furnace

2 EAF+LF+VD: Refined-smelting and vacuum degassing

3 EAF+ESR: Electro Slag Remelting

4 EAF+PESR: protective atmosphere Electro Slag Remelting

5 VIM+PESR: Vacuum induction melting



Forming Option

1 Hot rolling process

2 Hot Forging: Electro-hydraulic; High-speed-hydraulic; Oil-hydraulic; Precision-forging



Heat-treatment Option

1 +A: Annealed (full/soft/spheroidizing)

2 +N: Normalized

3 +NT: Normalized and tempered

4 +QT: Quenched and tempered (water/oil)



Surface Option

1 Black Surface

2 Grounded: Bright but rough ; Not precision

3 Machining for plate: Bright and precision; Little turning scar

4 Peeled/Turned: Bright and precision; Little turning scar

5 Polished: Very Bright and precision size; Not turning scar



Other Services

1 Cutting: Small pieces

2 CNC Machine: Produce as your drawing

3 Package: Bare/Nylon/Canvas/Wooden

4 Payment:T/T, L/C, O/A(request credit)

5 Transport:FOB/CFR/CIF/DDU/DDP (train/ship/Air)



We also supply :

1.2510/H10, 1.2842, 1.2379/D2, 1.2080/X210Cr12/D3, 1.2436, 1.2365, 1.2885, 1.2343, 1.2344/H13/SKD61, 1.2581/H21, 1.2709, 1.2345, 1.2738/P20NI, 1.2083/420J2, 1.2316, 1.2312/P20S, 1.2311, 1.2764
