1.4501 X2CrNiMoCuWN25-7-4 Austenitic-ferritic Stainless Steel
Introduce
The 1.4501 is an austenitic-ferritic, high-alloy, low-carbon chromium nickel molybdenum tungsten (super duplex) steel that is resistant to chloride-containing media and can be used in areas where traditional duplex steels are no longer adequate. Due to higher contents of chromium and molybdenum in combination with tungsten, the PREN-values of the material are from 40 to> 46 J with good impact values and wear resistance properties at -40 ° C. The steel 1.4501 – ASTM A182 F55 – Superduplex: UNS S32760 is resistant to seawater, has a high resistance to surface, as well as hole and crevice corrosion and is suitable to use in sulfuric acid.

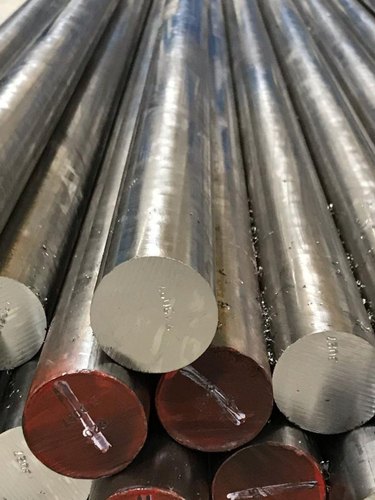

Our supply size:
Diameter : 80 to 600 mm ;
Length : 1000 to 9000 mm ;
Our advantage:
- High Quality, Reasonable Price
- Over 40 Years Experience
- ISO NQA Certificated Factory
- Worldwide shipping
- Emergency Orders and Fast Delivery
Standard:
EN 10088-1: 2005 Stainless steels. List of stainless steels
Equivalent grades of steel X2CrNiMoCuWN25-7-4 (1.4501)
| EU | USA |
| X2CrNiMoCuWN25-7-4 | S32750 |
| 1.4501 | S32760 |
Chemical composition % of steel X2CrNiMoCuWN25-7-4 (1.4501): EN 10088-2-2005
| C | Si | Mn | Ni | P | S |
| max 0.03 | max 1 | max 1 | 6-8 | max 0.035 | max 0.015 |
| Cr | Mo | W | N | Cu | |
| 24 – 26 | 3-4 | 0.5 – 1 | 0.2 – 0.3 | 0.5 – 1 |
Mechanical properties of steel X2CrNiMoCuWN25-7-4 (1.4501)
| Rm – Tensile strength (MPa) (+A) | 730-930 |
| Rm – Tensile strength (MPa) (+AT) | 800-1000 |
| Rp0.2 0.2% proof strength (MPa) (+A) | 530 |
| Rp0.2 0.2% proof strength (MPa) (+AT) | 550 |
| A – Min. elongation at fracture (%) (+A) | 25 |
| A – Min. elongation at fracture (%) longitud., (+AT) | 20 |
| Brinell hardness (HB): (+A) | 290 |
| Brinell hardness (HB): (+AT) | 310 |
Application
Super Duplex steels also find applications in the chemical, paper, cryogenic and power industries for parts and subassemblies such as pumps, shafts, bushes, aerial constructions, heat exchangers, coolers, chemical transport pipelines, special tanks, valves, snd screws. The Super Duplex steels described above are subject to hyperquenching at temperatures between 1020 and 1100 ℃.
Smelting Option
1 EAF: Electric Arc Furnace
2 EAF+LF+VD: Refined-smelting and vacuum degassing
3 EAF+ESR: Electro Slag Remelting
4 EAF+PESR: protective atmosphere Electro Slag Remelting
5 VIM+PESR: Vacuum induction melting
Forming Option
1 Hot rolling process
2 Hot Forging: Electro-hydraulic; High-speed-hydraulic; Oil-hydraulic; Precision-forging
Heat-treatment Option
1 +A: Annealed (full/soft/spheroidizing)
2 +N: Normalized
3 +NT: Normalized and tempered
4 +QT: Quenched and tempered (water/oil)
Surface Option
1 Black Surface
2 Grounded: Bright but rough ; Not precision
3 Machining for plate: Bright and precision; Little turning scar
4 Peeled/Turned: Bright and precision; Little turning scar
5 Polished: Very Bright and precision size; Not turning scar
Other Services
1 Cutting: Small pieces
2 CNC Machine: Produce as your drawing
3 Package: Bare/Nylon/Canvas/Wooden
4 Payment:T/T, L/C, O/A(request credit)
5 Transport:FOB/CFR/CIF/DDU/DDP (train/ship/Air)
Mill test certificate
EN 10204/3.1 with all relevant data reg. chem. composition, mech. properties and results of testing.
We also supply :
1.2510/H10, 1.2842, 1.2379/D2, 1.2080/X210Cr12/D3, 1.2436, 1.2365, 1.2885, 1.2343, 1.2344/H13/SKD61, 1.2581/H21, 1.2709, 1.2345, 1.2738/P20NI, 1.2083/420J2, 1.2316, 1.2312/P20S, 1.2311, 1.2764
For all products, please check here: Fushun products
