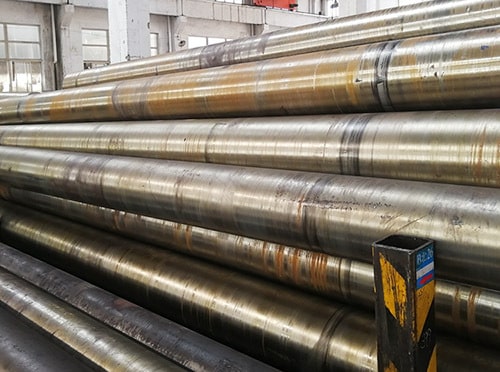

1.2709 Hot Work Tool Steel
Tool steels such as 1.2709 are primarily used for manufacturing tools and molds. They are characterized by a high hardness combined with a high ductility. Their specific mechanical properties allow usage in high-stressed components due to its high wear resistance.The maximum operating temperatures can further reduce wear.An SLM-specific bene t is the layerwise manufacturing,which allows to implement cooling channels into the component.
We can provide more services:
1、Hardening and tempering
2、Vacuum heat treatment
3、Polished bright surface
4、Milling bright surface
5、CNC machine
6、Deep drilling
7、Cut into small pieces
8、Make it closer to the mold
Welcome to inquiry price from drawing
Cutting:
Precision cutting to standard dimensions
Custom cutting according to client specifications
Surface Grinding/Polishing:
Thickness tolerance: -0 to +0.1mm
Flatness: 0.01/100mm
Surface roughness: Ra ≤1.6 or Rz ≤6.3
Typical Applications
- Inserts for injection molding
- Inserts for die casting
- Tooling
- Material Numbers
Standard
UNS K93120
AMS 6521, 6514
ASTM Marage 300
Chemical composition%of the ladle analysis of grade1.2709
C(%) | Si(%) | Mn(%) | P(%) | S(%) | Cr(%) | Ni(%) | Mo(%) | Co(%) | Ti(%) |
Max 0.03 | Max 0.10 | Max 0.15 | Max 0.010 | Max 0.010 | Max 0.025 | 17.0-19.0 | 4.50-5.20 | 8.50-10.0 | 0.80-1.20 |
Smelting Option
1 EAF: Electric Arc Furnace
2 EAF+LF+VD: Refined-smelting and vacuum degassing
3 EAF+ESR: Electro Slag Remelting
4 EAF+PESR: protective atmosphere Electro Slag Remelting
5 VIM+PESR: Vacuum induction melting
Forming Option
1 Hot rolling process
2 Hot Forging: Electro-hydraulic; High-speed-hydraulic; Oil-hydraulic; Precision-forging
Heat-treatment Option
1 +A: Annealed (full/soft/spheroidizing)
2 +N: Normalized
3 +NT: Normalized and tempered
4 +QT: Quenched and tempered (water/oil)
Suface Option
1 Black Surface
2 Grounded: Bright but rough ; Not precision
3 Machining for plate: Bright and precision; Little turning scar
4 Peeled/Turned: Bright and precision; Little turning scar
5 Polished: Very Bright and precision size; Not turning scar
Other Services
1 Cutting: Small pieces
2 CNC Machine: Produce as your drawing
3 Package: Bare/Nylon/Canvas/Wooden
4 Payment:T/T, L/C, O/A(request credit)
5 Transport:FOB/CFR/CIF/DDU/DDP (train/ship/Air)
Physical Properties
Properties | Value |
Density [g/cm3] | 8.0 |
Tensile strength UTS [MPa] | >1000 |
Yield strength [MPa] | >900 |
Young’s modulus [GPa] | >130 |
Elongation [%] | <13 |
Heat Treatment
EOS ToolSteel 1.2709 can be heat treated to match various needs of different applications.The two step heat treatment can be performed under vacuum or inert gas atmosphere.First step is solution annealing to minimize amount of austenite in the martensitic matrix. The needed hardness and strength is achieved through aging treatment where hardening takes place through
forming of intermetallic phases and precipitates.
Solution Annealing:
2 h at 940″C(+10″C)measured from the part followed by rapid air cooling to room temperature(below 32″C).Cooling rate 10-60″C/min. Reaching room temperature before starting aging treatment is required to achieve desired microstructure.
Aging:
For peak hardness and strength 3-6 h at 510’C(+10C)measured from the part followed by air cooling. Mechanical properties presented in this document achieved through this aging procedure.For bulky parts ensure uniformity of properties by increasing hold time up to 6 h.Also,
to maximize fatigue strength,a hold time of 6 h is recommended.
